60m/S Kliplok Solar Structure For Tin Shed Aluminum Standing Seam Mount

Kliplok 700 Metal Roof Mount system Tin Roof Commercial solar photovoltaic system

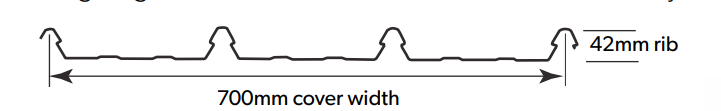

KLIP-LOK 700 is a 700mm wide-cover concealed fixed cladding with no exposed fasteners for weathertight roofs, which min slop is more than 1°, it suits for installation over insulation up to 100mm thick. KLIP-LOK 700 is a superior type which has earned FM Global approval. The bold rib makes a strong visual statement rising from the flat pans.

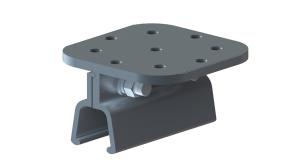

Kliplok 700 clamp is a customer-made products for KLIP-LOK 700 roof, which is mainly used in Australia, New Zealand and some Asia countries, for example Thailand, Vietnam and so on. This clamp is made of rust-free aluminum alloy and roof-safe A2-70 stainless steel set screws. The whole solar system no drilling, no leaking, no damage!

The top of the clamp is a large plane and 9 internal threaded hole is provided, it can fix with the L-feet only by bolt, no need to use nut again. It can use together with Mid clamp and End clamp directly, no need to use rail. It can also use together will adjustable triangle structure or adjustable leg if you want to make the panels have an angle with the roof.

LP SOLAR engineer team can offer different solutions for your Kliplok 700 roof depending on your detail requirements.

We respect roofs!

Technical Data

Installation steps

1. Hanger bolt installation	2. Rail installation	3. Panel installation

Metal Roof Mount System Components

Photo	Item No	Name	Product type	Product line
	HCR01	Kliplok 700 clamp	Clamps	MRA2
	49L0000A	Rail 50	Racking	MRA
	AC02	Rail 50 joiner	Racking	MRA
	A735	Mid clamp	Racking	All
	A835	End clamp	Racking	All
	H6WL0000S	Earthing plate	Earthing	MRA
	ED02	Earthing lug	Earthing	MRA
